Down-the-hole (DTH) drilling tools are one of the most efficient solutions for hard rock drilling applications where accuracy, depth, and penetration rate are critical. Unlike top-hammer systems, DTH technology places the hammer directly behind the drill bit, ensuring maximum energy transfer and minimal loss during deep drilling operations.
Our DTH drilling tools are engineered for high performance in demanding environments such as mining, quarry blasting, water well drilling, geotechnical exploration, and foundation engineering. Built with premium alloy steel and advanced heat treatment, they deliver exceptional durability, straight hole accuracy, and long service life.
What Are Down-the-Hole Drilling Tools?
DTH drilling tools are a complete system consisting of a hammer that operates at the bottom of the drill string, directly impacting the drill bit. Compressed air powers the hammer, creating high-frequency percussion that breaks rock efficiently while flushing cuttings to the surface.
This structure allows energy to be delivered exactly where it is needed—at the rock face—making DTH drilling highly effective for deep and hard rock formations.
Main Components of DTH Drilling Tools
A complete DTH drilling system typically includes:
- DTH Hammer (Low, medium, and high air pressure types)
- DTH Drill Bits (Button bits with various face designs)
- Drill Pipes (Extension rods for depth drilling)

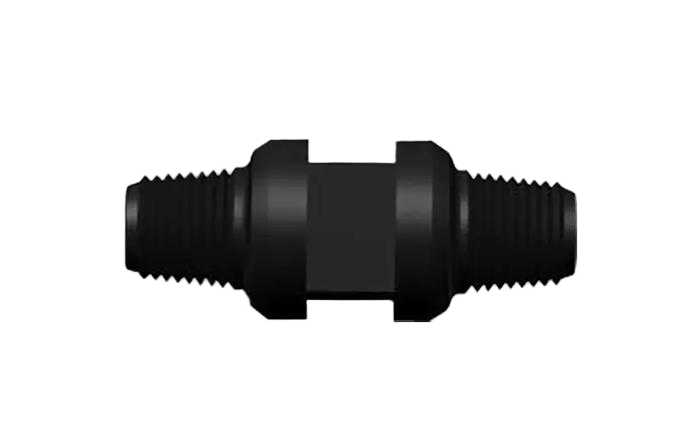

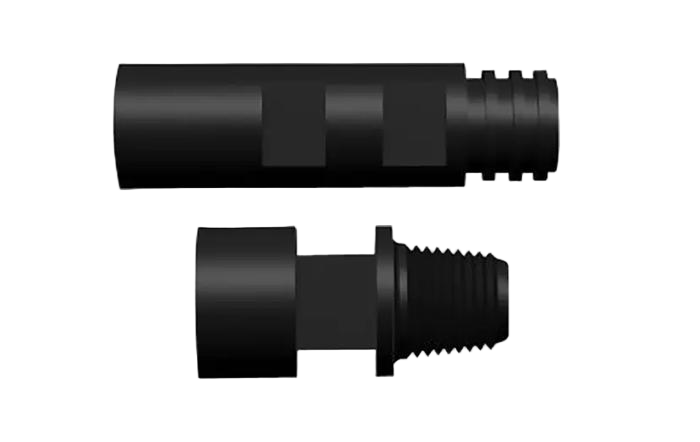

- Shank Adapters and Couplings
- Air Distribution Valves
- Reverse Circulation (RC) tools (optional for sampling drilling)
Each component plays a crucial role in ensuring efficient energy transfer, drilling stability, and hole quality.
DTH Hammers
DTH hammers are the core power unit of the system, converting compressed air into mechanical impact energy.
Key Features
High Impact Energy Output
Strong percussive force ensures fast penetration in hard rock formations.
Stable Air Efficiency
Optimized internal valve design improves air consumption and energy utilization.
Heat-Resistant Structure
Designed to perform under high-pressure and high-temperature conditions.
Long Service Life
Wear-resistant components reduce maintenance frequency and downtime.
Types of DTH Hammers
- Low air pressure hammers
- Medium air pressure hammers
- High air pressure hammers
- Valved and valveless designs

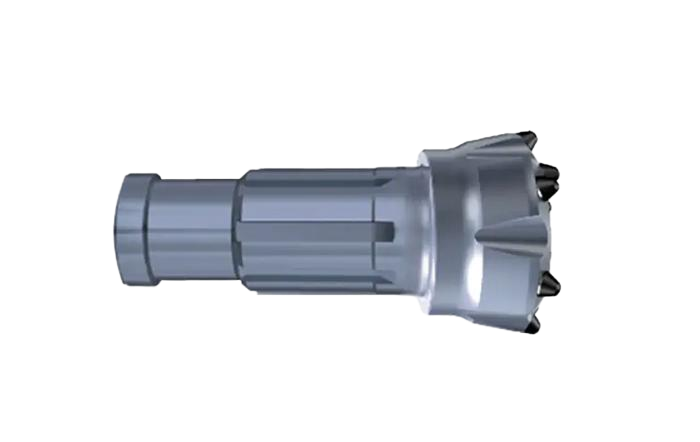

DTH Drill Bits
DTH drill bits are equipped with tungsten carbide buttons designed to crush and fracture rock efficiently.
Key Features
Superior Wear Resistance
Carbide inserts withstand extreme abrasion in granite, basalt, and iron ore formations.
Optimized Button Design
Different face shapes (concave, convex, flat) improve drilling efficiency in various rock conditions.
High Penetration Rate
Efficient rock breaking reduces drilling time per meter.
Reduced Bit Deviation
Stable design ensures accurate hole direction even at greater depths.
Common Bit Types
- Flat face bits (hard and abrasive rock)
- Concave bits (medium-hard rock)
- Convex bits (soft to medium formations)

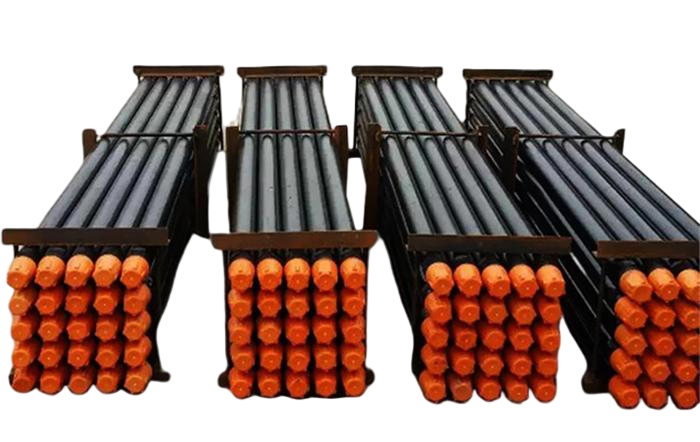

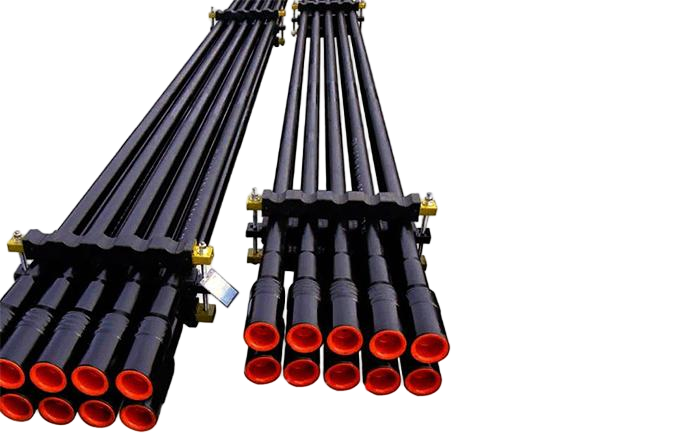

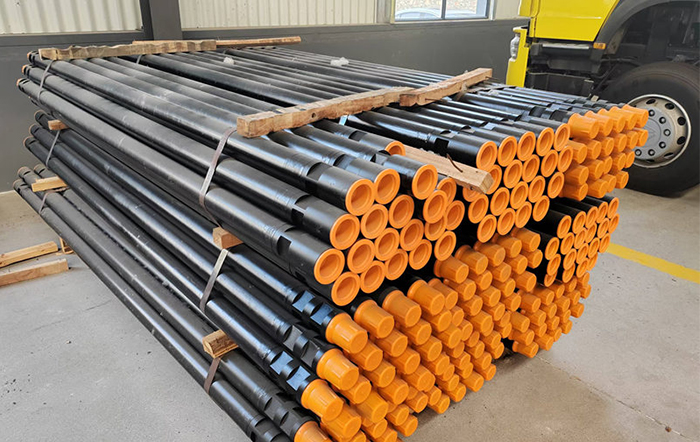

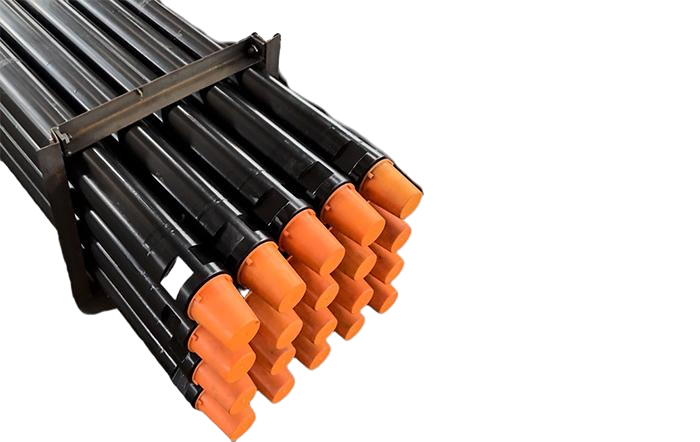

Drill Pipes for DTH Systems
Drill pipes connect the hammer to the surface and transmit compressed air and rotation.
Key Features
High Strength Alloy Steel
Designed to withstand torque, tension, and impact loads.
Precision Thread Connection
Ensures tight sealing and reduces air leakage.
Excellent Fatigue Resistance
Suitable for long-duration deep drilling operations.
Corrosion Resistance
Surface-treated for harsh outdoor and mining environments.
Advantages of Down-the-Hole Drilling Tools
High Drilling Efficiency
Direct impact at the bit provides faster penetration compared to conventional rotary systems.
Excellent Hole Straightness
Ideal for deep drilling applications requiring precise alignment.
Lower Energy Loss
Efficient energy transfer reduces compressor load and operating costs.
Versatile Application Range
Suitable for a wide variety of geological conditions.
Reduced Operational Cost
Long tool life and stable performance lower overall drilling expenses.
Applications of DTH Drilling Tools
DTH drilling systems are widely used in:
- Open-pit mining blast holes
- Quarry stone extraction
- Water well drilling
- Geothermal exploration
- Foundation and piling projects
- Road and railway construction
- Geotechnical investigation
- Oil and gas shallow drilling
DTH Drilling in Hard Rock Conditions
DTH technology is especially effective in hard and abrasive rock formations where traditional rotary drilling struggles. It maintains high penetration rates even in granite, basalt, quartzite, and iron ore deposits.
Key benefits in hard rock drilling:
- Stable performance under high resistance
- Reduced bit wear
- Improved drilling accuracy
- Faster cycle times
Why Choose Our DTH Drilling Tools?
Premium Material Quality
Manufactured using high-grade alloy steel and tungsten carbide for maximum durability.
Precision Engineering
Ensures consistent performance and compatibility with global drilling systems.
High Reliability in Extreme Conditions
Designed for continuous operation in mining and quarry environments.
Extended Service Life
Optimized design reduces wear and increases tool lifespan.
Wide Compatibility
Suitable for most international DTH rigs and compressor systems.
Improve Your Drilling Performance with DTH Technology
Down-the-hole drilling tools are the preferred solution for high-efficiency, deep, and precise rock drilling operations. Whether used in mining, quarrying, or infrastructure projects, our DTH systems deliver reliable performance, lower operational costs, and improved productivity.
Contact us for customized DTH drilling tool solutions tailored to your project requirements.
