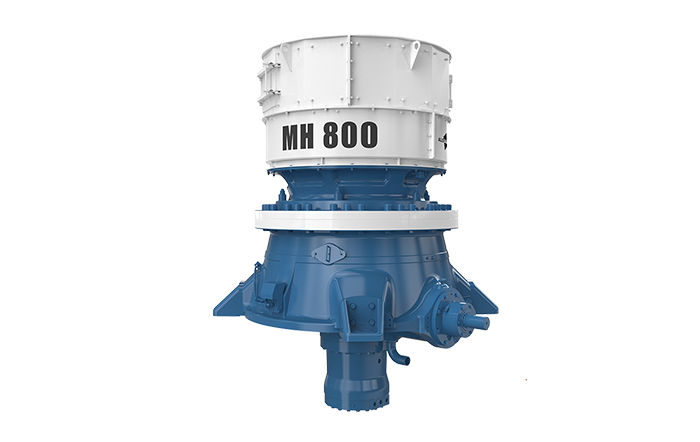

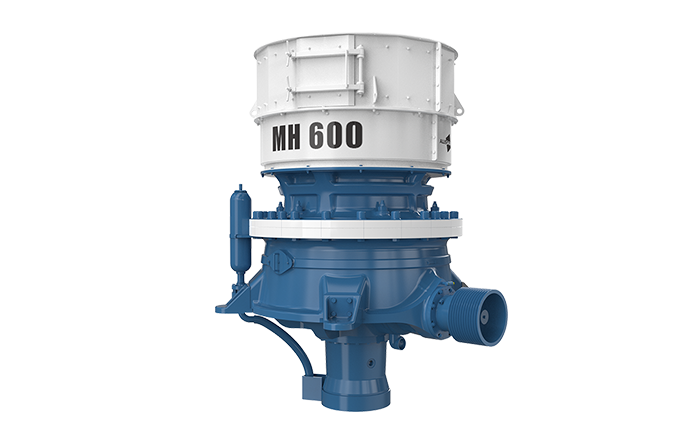

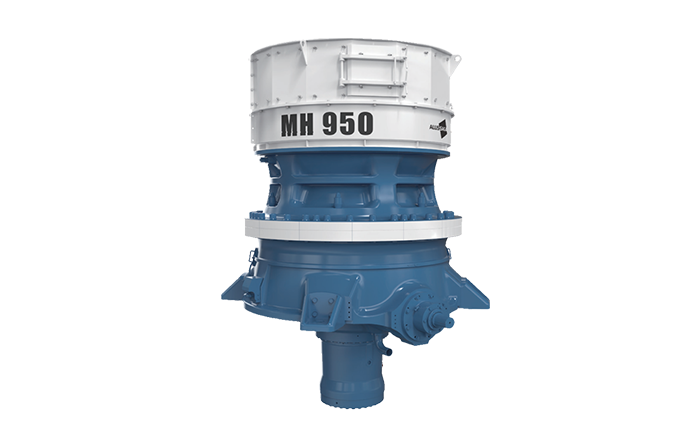

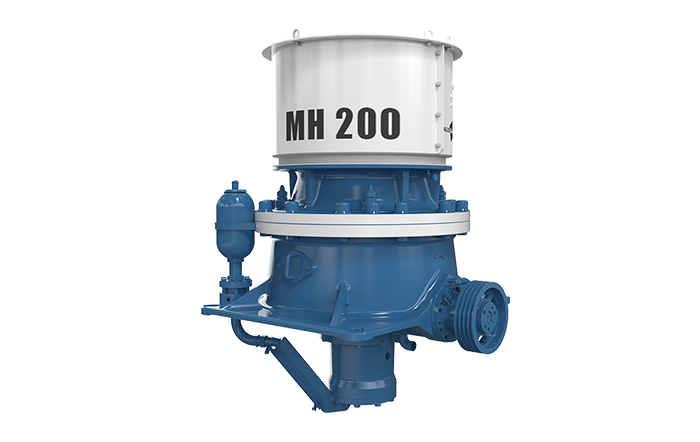

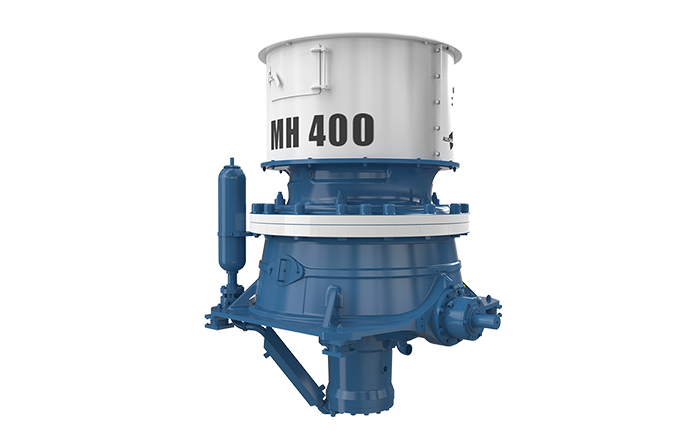

MH Series Single Cylinder Hydraulic Cone Crushers

The MH Series integrates cutting-edge mechanical engineering, advanced hydraulics, and intelligent control systems to redefine high-performance crushing. Engineered to thrive in the most demanding environments, these crushers efficiently process high-hardness and highly abrasive ores with unmatched stability.

With its versatile design, the MH Series excels across secondary, tertiary, and ultra-fine crushing stages in both metal mining and aggregate production. Its streamlined single-cylinder structure ensures superior reliability and ease of maintenance, while the intelligent automation system allows for precise, real-time adjustments. Choose the MH Series for maximum throughput and seamless adaptability in your largest operations.

Inquire Now Next Products

Model

MH series consist of MH200, MH300, MH400, MH600, MH700, MH750, MH800, MH900, MH950

Advantages

Technologically Advanced

• The optimized design of the crushing chamber ensures stable equipment productivity and consistent final product particle shape throughout the liner's entire service life.

• Equipped with a highly reliable hydraulic protection system, enabling efficient automatic defense during iron overload and overload conditions

• The transmission mechanism delivers outstanding performance, significantly reducing noise emissions during operation

• Overall power consumption is only 50% of traditional crusher models, demonstrating exceptional energy efficiency

• The machine features a simple yet robust structural design, with the main shaft supported at both ends for more balanced force distribution

• Supports selection from dozens of crushing chamber configurations to fully meet various finished material specifications

• Single eccentric bushing accommodates multiple eccentricity settings for flexible adaptation to diverse operational requirements

• Equipped with CIS intelligent control system to maximize equipment performance potential and effectively reduce full-cycle operating costs

High Reliability

Upper Frame:

The upper frame is constructed from high-quality steel.

Lower Frame:

Optimize the frame structure by adding horizontal and vertical stiffening plates to enhance structural strength and prevent cracking risks.

Main Shaft:

The main shaft is forged from high-quality advanced alloy steel. All forgings undergo rigorous heat treatment, precision machining, and comprehensive non-destructive inspection throughout the entire process to ensure compliance with quality standards.

Easy to Operate

The automatic control system provides real-time feedback on crusher operating parameters, enabling operators to develop scientific replacement schedules according to liner wear status. This significantly shortens equipment downtime and lowers labor costs.

The positive-pressure air sealing system, combined with the equipment's internal precision sealing structure, maximizes isolation against fine particle and dust intrusion. This effectively mitigates wear risks on internal components, extends equipment lifespan, and reduces routine maintenance frequency and workload.

Featuring an overhead maintenance design, all inspection and repair tasks can be performed from above. The hydraulic lubrication system further enhances the convenience, efficiency, and safety of maintenance operations.

Application Scenarios

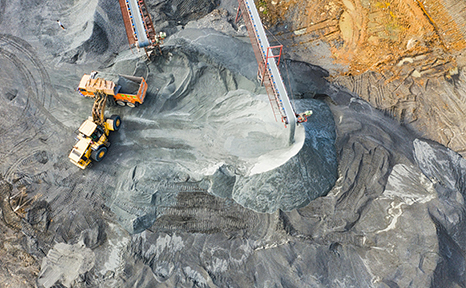

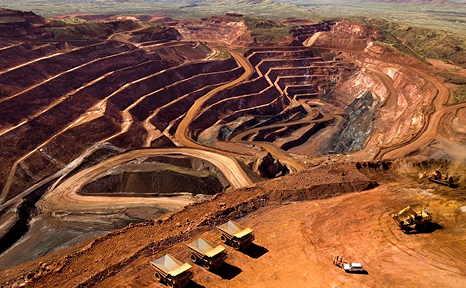

Mining

In metal mining, cone crushers mainly serve as secondary and tertiary crushing, efficiently reducing high-hardness ores to the precise particle size required for beneficiation and smelting. It also solves the problem of inconsistent particle size and low efficiency that traditional equipment suffers from. Simultaneously, they accommodate crushing demands for non-metallic minerals such as limestone, gypsum, and quartz. A single machine covers multiple material types, significantly reducing procurement costs on mining equipment.

Construction

In the construction engineering sector, cone crushers play an irreplaceable and pivotal role. They can precisely crush solid waste, such as construction debris and waste concrete. The processed, recycled aggregates is stable in properties and can be directly incorporated into projects, which positively responds to environmental requirements for construction projects. These machines also perform standardized crushing of natural materials, such as limestone and river pebbles. The produced sand and gravel aggregates are in uniform particle sizes that fully satisfy the stringent material standards for construction processes, such as roadbed filling and concrete mixing. This ensures project quality and adherence to schedules.

Highway and Railway Construction

In highway and railway construction, cone crushers are essential for producing high-quality aggregates. These crushers efficiently crush various types of rock and stone, yielding aggregates with a uniform particle size and optimal gradation. These aggregates are directly used in critical processes such as roadbed filling and concrete mixing, laying a solid material foundation for the stability and durability of road engineering projects.

Water Conservancy

In the field of water conservancy, cone crushers have become the core equipment for high-standard aggregate preparation by virtue of its precise crushing technology. To meet the stringent requirements for aggregate strength and particle shape in facilities such as dams, levees, and canals, the equipment performs precisely crushing of various rock materials. The produced aggregates are in uniform particle size, with low content of elongated and flaky particles, and meet crushing value standards. This fully complies with technical codes for water conservancy projects in terms of impermeability, erosion resistance, and settlement resistance. Thus, it lays a solid foundation for the long-term stability and operational safety of water conservancy facilities, beginning with the raw material stage.

Chemical and Silicate Industries

In the chemical and silicate industries, cone crushers have become indispensable tools for processing core raw materials like limestone and quartz sand, thanks to their precise and controllable crushing technology. These machines can crush raw materials to uniform particle size standards according to production requirements. Their efficient and stable crushing capabilities ensure the precision and consistent quality of downstream chemical products, glass, and ceramics.

Dimension

Size （mm）	MH200	MH300	MH400	MH600	MH700	MH750	MH800	MH900	MH950
A	Φ1078	Φ1360	Φ1540	Φ2104	Φ2101	Φ2101	Φ2450	Φ2946	Φ2946
B	2560	2992	3410	4250	4540	4074	5475	5846	5806
C	1020	1125	1300	1800	1815	1815	2205	2260	2260
D	540	655	745	880	1126	1126	1228	1188	1188
E	1000	1212	1365	1755	1599	2259	2045	2400	2410
F	400	422	452	630	497	497	999	637	637
G	843	1062	1280	1497	1745	1745	1830	2075	2075
H	1270	1705	1900	2157	2638	2638	2850	3095	3095
I	1425	1688	1985	2187	2966	2966	3095	3581	3581
J	3000	3570	4000	4788	5907	5907	6620	7075	7075
Maximum Overhaul Weight（kg）	2360	3920	5900	7700	12520	12520	22600	23800	23800
Weight（not including motor）（kg）	5600	9200	15600	25850	39710	38930	50000	78100	80200
